Novus Temperature and Process Controllers

temperatire controller

Novus Automation having over forty years history in developing advanced process controls and indicators has become known worldwide for producing powerful compact digital PID temperature process controllers, thermostats, temperature sensors, solid state relays, humidity transmitters and data logger devices. Novus is located in Brazil maintains USA warehouse stock available for quick shipment out of its Florida warehouse. SWHC is a proud distributor of Novus automation products.

Common Applications

  • Analytical Equipment
  • Batch Ovens
  • Chemical Processing
  • Commercial Cooking/Warming
  • Continuous Ovens
  • Defrost Equipment
  • Extrusion Machines
  • Food Packaging Machinery
  • Food Service Equipment
  • Injection Molding
  • Lab Equipment
  • Medical Film Machines
  • Packaging Machines
  • Refrigeration
  • Silk Screening & Printing Machines
  • Textile Machinery
  • Thermoformers
temperature controller

N20K48 Modular Controller

N20K48 Modular Controller is a controller family is a new modular cost effective and compact, powerful controller that combines an expandable dock for “ClickNGo” micromodules. The add on modules allow expansion digital inputs and outputs an analog output and three relays RS 485 RTU Modbus and wireless “Bluetooth” interfaces with smart phone and PC friendly configuration downloadable “QuickTune” software.

temperature controller

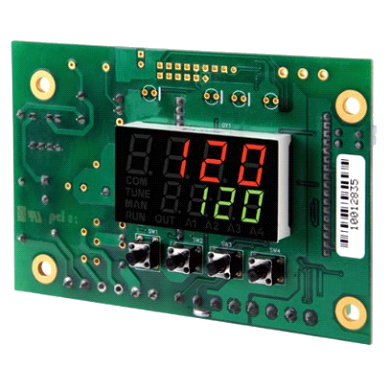

N120 Process Controller

N120 Process Controller is a complete and versatile process controller arranged on a printed circuit board. The N120 accepts most sensors and signals used in industry and provides the main types of output needed to operate in various processes. A unique feature of this controller is its self-adaptive PID algorithm, which continuously adjusts the PID parameters to obtain the best possible performance for the process. The Controller configuration is accomplished using a keyboard or via QuickTune configuration software, without any changes to the circuit.

temperature controller

N480D Temperature Controller

N480D Temperature Controller is a series of dual display Autotuning PID temperature controllers designed for less experienced users. The N480D combines simplicity in operation with high performance at a low cost. The controller comes standard with ramp and soak features has a universal power supply range. It accepts most thermocouples and Pt100 RTD, features a relay and pulse output for driving solid state relays with linear, 4-20 mA output options.

temperature controller

N1020 1/32nd Din Temperature Controller

N1020 1/32nd Din Temperature Controller is a self-adaptive PID temperature controller having a high-performance microprocessor, with the capability to control complex and critical processes. It accepts multiple thermocouple types, Pt100 and 0-50 mV. The programmable input and configurable dual output along with the full range power supply provide maximum flexibility.

temperature controller

N1030 Temperature Controller

N1030 Temperature Controller is a temperature controller that features a high performance PID algorithm in a compact housing, with only 35 mm depth. Its compact construction and the convenient detachable connector provide an easy set up on short profile panels, optimizing the space and reducing costs. It has two outputs available which can be configured either as control or an alarm.

temperature controller

N1030T Temperature Controller & Timer

N1030T Temperature Controller & Timer is a compact PID temperature controller with a timer ideal for manufacturers of machines and equipment where panel space is limited. The housing has a 35 mm depth. Its compact size and detachable connector provide for easy installation on low-profile panels. It has two outputs that can be configured as control, alarm, or timer outputs. It is configurable with two independent timers and additional operation modes.

temperature controller

N1040 Temperature Controller

N1040 Temperature Controller is an economical microprocessor-based temperature controller offering high accuracy. It has a short depth profile reducing panel space requirement. It features a removable wiring connection block which allows for easy installation. It accepts Pt100 RTDs and thermocouple types J, K and T and has two outputs for control and alarm, universal power supply and automatic tuning of the PID parameters.N1040 PDF

temperature controller

N1040T Time and Temperature Controller

N1040T Time and Temperature Controller is an economic and efficient 1/16 DIN PID Temperature controller combining timer, automatic tuning, ON-OFF control features and is configurable. It has a reduced depth flameproof plastic enclosure. It has two independent timers. It accepts Pt100 sensors and thermocouple types J/K/T. It has four configurable outputs for process control, alarm, or timing. Configuration protection by password and factory calibration recovery.N1040T PDF

temperature controller

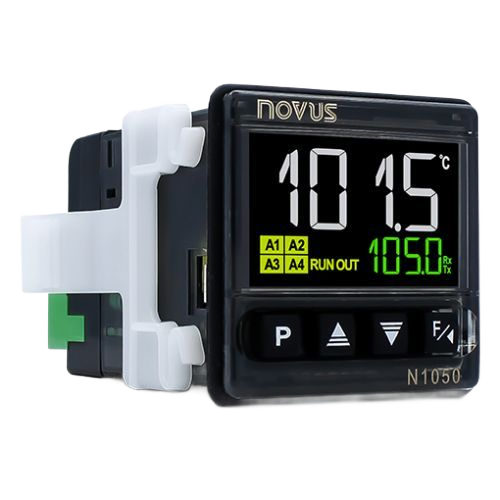

N1050 LCD temperature PID controller

N1050 LCD temperature PID controller is an advanced high performance low-profile PID temperature controller featuring a vivid multicolor eleven segment LCD display. It combines a PID algorithm with alphanumeric mnemonics and clear status signaling. The N1050 has up to three output relays in pulse or relay modes. It offers five configurable ramp and soak programs, soft start, timer function, password protection, configurable control parameters, USB port and RS485 Modbus interfaces.

temperature controller

N1200 Auto-Adaptive PID Controller

N1200 Auto-Adaptive PID Controller is a process controller designed for high performance control in the most demanding applications. Its advanced Auto-Adaptive PID algorithm ensures fast and accurate response in processes with complex profiles. Besides the standard parameter settings, N1200 offers all the standard features plus customized ramp and soak profiles with up to twenty user-configured recipes with up to 180 segments. The controller has a USB Port and comes with free configuration Software.

temperature controller

N2000 1/8 DIN Universal Process Controller

N2000 1/8 DIN Universal Process Controller is a versatile single instrument offering all major control features required in most industrial processes. Power supply for remote loop powered transmitters is standard. The N2000 process controller can be used in simple applications as a temperature controller or for more complex systems of control with PLC’s or SCADA networks.

temperature controller

N2000S Universal Process Controller

N2000S Universal Process Controller is a versatile single instrument offering all major control features required in most industrial processes The N2000S offers sophisticated and consistent software and its advanced universal circuitry, In addition to temperature control the N2000S is can be used for applications that require the control of motorized vales, servo actuators and dampers by means of two-time proportional relays.

temperature controller

N3000 Large Digit ¼ DIN Universal Process Controller

N3000 Large Digit ¼ DIN Universal Process Controller is a versatile single instrument offering all major control features required in most industrial processes. The N3000 controller accepts configuration of both input signal and control output through the front keyboard without any internal hardware change. Power supply for remote loop powered transmitters is standard. The N3000 can be used in simple applications as a temperature controller for more complex systems of distributed control with PLC’s or SCADA networks.
