Watlow Temperature and Process Controls
Common Applications
- Analytical Equipment
- Batch Ovens
- Chemical Processing
- Commercial Cooking/Warming
- Continuous Ovens
- Defrost Equipment
- Extrusion Machines
- Food Packaging Machinery
- Food Service Equipment
- Injection Molding
- Lab Equipment
- Medical Film Machines
- Packaging Machines
- Refrigeration
- Silk Screening & Printing Machines
- Textile Machinery
- Thermoformers
PM PLUS™ PID & Integrated Limit Controller
Watlow’s PM PLUS™, the enhanced EZ-ZONE® PM, is now more intuitive and features an enhanced interface for easier programming and readability with a SMOOTH-TOUCH™ keypad creating an industry leading user experience. The PM PLUS is backwards compatible with legacy EZ-ZONE PM controllers but offers many user upgrades including an intuitive menu flow allowing the controller to be easily configured. It also continues to offer the industry leading Bluetooth® connectivity with the EZ-LINK™ mobile app for remote access capability and full descriptions of parameters and error codes. The PM PLUS improves the user experience by reducing the complexity at the front of the control while eliminating the dependency of cables when configuring the product.
Like the original EZ-ZONE PM, the PM PLUS can be ordered as a PID controller, or an integrated controller with multiple functions combined into one.

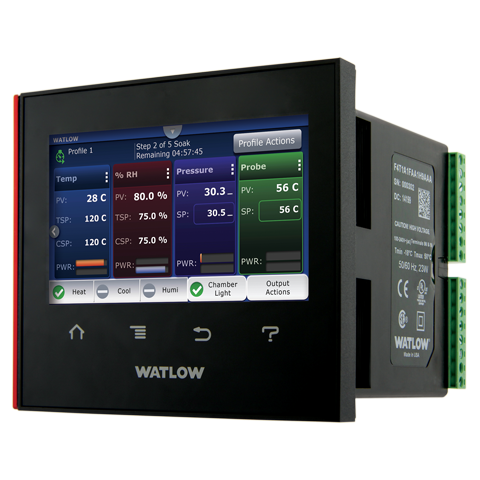

F4T Temperature and Process Controller
The F4T temperature & process controller from Watlow offers a wide range of field removable I/O modules for maximum design flexibility. Configurations can be custom tailored to meet the scaling needs of a tremendous range of equipment and applications while providing exactly the hardware types required for compatibility. The F4T controller also features a 4.3 inch, color, graphical touch panel. Combining power, flexibility and functionality, this new controller offers unmatched versatility, and its best-in-class ease of use could very well make user manuals a thing of the past.
Watlow RM Rail Mount Controllers
The EZ-ZONE RM controller simplifies thermal system management. The EZ-ZONE RM integrated controller family is comprised of six module types: an integrated on-off or PID control, monitoring and over/under temperature limit controller module, a high-density on-off or PID control module, a high-density limit-only module, an input/output (I/O) expansion module, a high-density monitor/scanner module and a data logging and field communications access module. A system is configured by connecting any combination of module types to address specific application needs. The EZ-ZONE RM is extremely flexible and scalable allowing mixing and matching of I/O to configure 1 to 152 control loops and up to 256 monitor points.

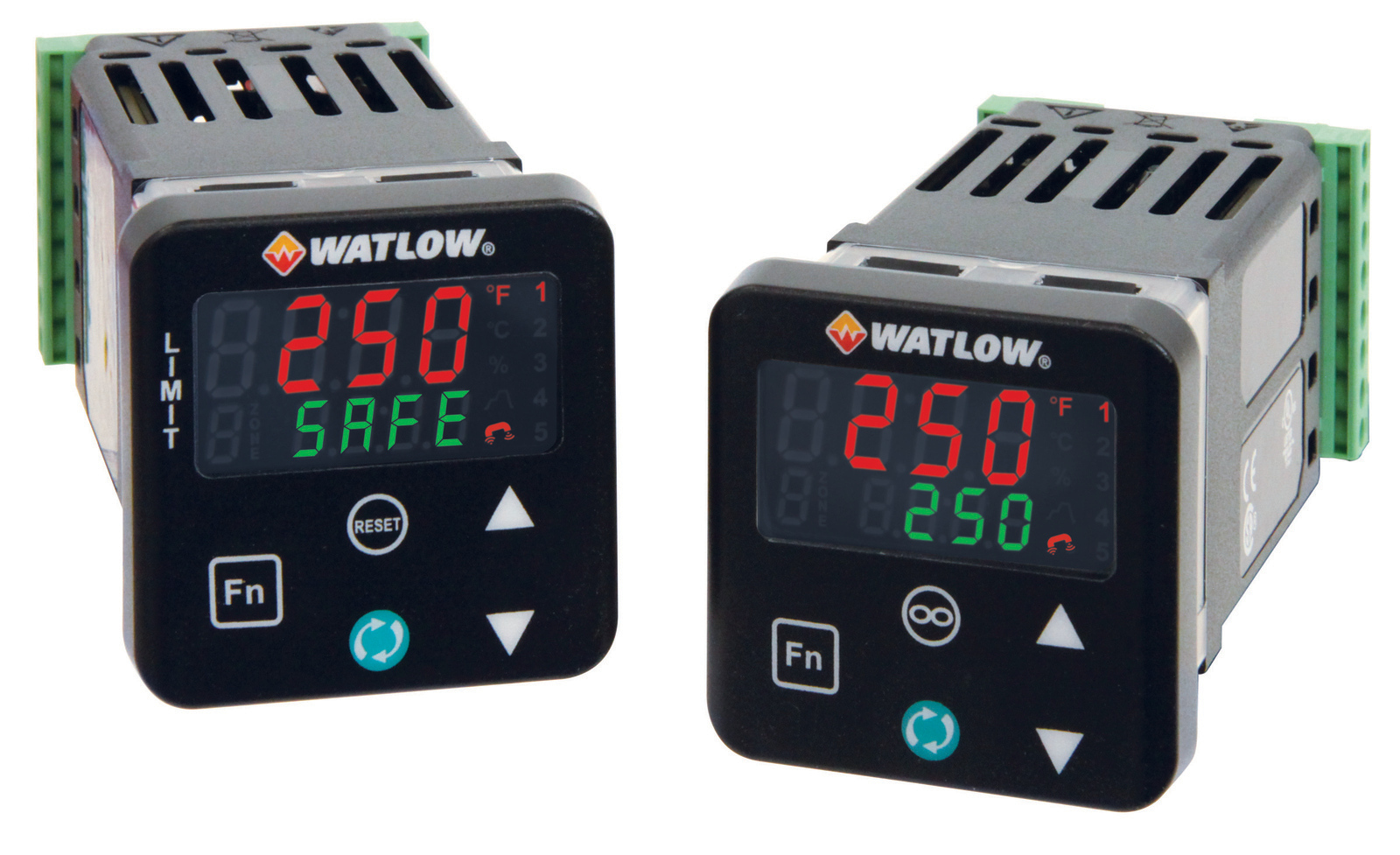

PM LEGACY Panel Mount Controller
The Watlow® LEGACY SERIES panel mount controller is an industry-leading PID controller that allows optimal performance utilizing simple control and menu functionality without complex features. It is ideally suited for basic applications and usage levels. The LEGACY includes one universal input and an option for up to two outputs and is available in 1/16 DIN and 1/32 DIN panel mount packages. It can be ordered as a PID process controller or as a dedicated over and under-temperature limit controller.

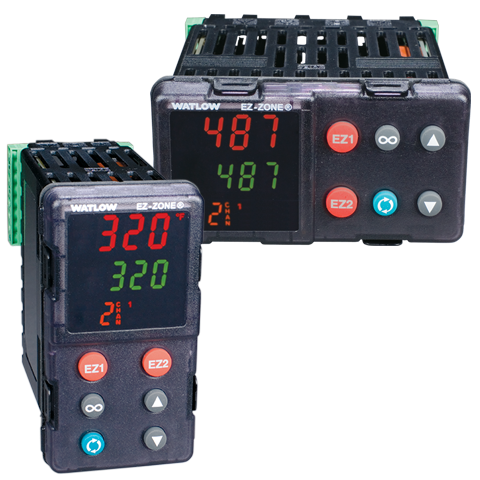

Watlow EZ-ZONE PM Panel Mount Controller DISCONTINUED
The EZ-ZONE PM panel mount controller offers control options that reduce system complexity and thermal loop ownership cost. It can be ordered as a PID controller, an over/under limit controller or its functions can be combined into an integrated controller. An option to integrate a high amperage power controller output with a high-performance PID controller and an over/under limit controller in one space-saving, panel mount package is also available. Many communications options are offered to support connectivity needs.
Because the EZ-ZONE PM panel mount controller is highly scalable, you pay only for what is needed. This controller is available in 1⁄32,1⁄16,1⁄8 and 1⁄4 DIN panel mount packages. The EZ-ZONE PM controller is easy to use and is ideal for PID controller, over/under limit controller or integrated controller needs

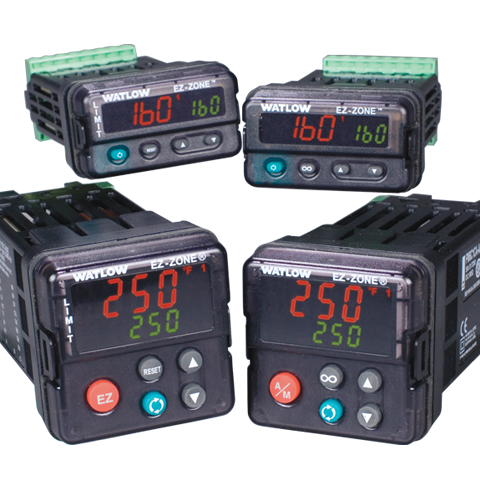

Watlow EZ-ZONE PM Express Controller DISCONTINUED
The EZ-ZONE PM Express panel mount controller is an industry-leading PID controller that allows optimal performance utilizing simple control and menu functionality without complex features. It is ideal for basic applications and usage levels.
The EZ-ZONE PM Express is the next generation controller to follow the legacy of Watlow's SERIES 93, SERIES 935 AND SERIES SD controllers that offer easy-to-use features for many basic applications. The EZ-ZONE PM Express includes one universal input and an option for up to two outputs and is available in 1⁄32 and 1⁄16 DIN panel mount packages. It can be ordered as a PID process controller or as a dedicated over and under-temperature limit controller.
